LADDERS

Single

|

|

	Characteristics
	Technical Data
	Enlarge Image

Ref.	Bar Code	Measures	Steps	Height kg	Product's Height	Height for user
98	5600332260988	2,0 m	6	3,19	2,00	2,90
99	5600332260995	2,5 m	7	3,90	2,50	3,40
100	5600332261088	3,0 m	9	4,70	3,00	3,90
101	5600332261015	3,5 m	11	5,73	3,50	4,40
102	5600332261022	4,0 m	12	6,76	4,00	4,90
103	5600332261039	4,5 m	14	7,66	4,50	5,40
104	5600332261046	5,0 m	16	8,56	5,00	5,90
105	5600332261053	5,5 m	17	9,51	5,50	6,40
106	5600332261060	6,0 m	19	10,46	6,00	6,90
					Single

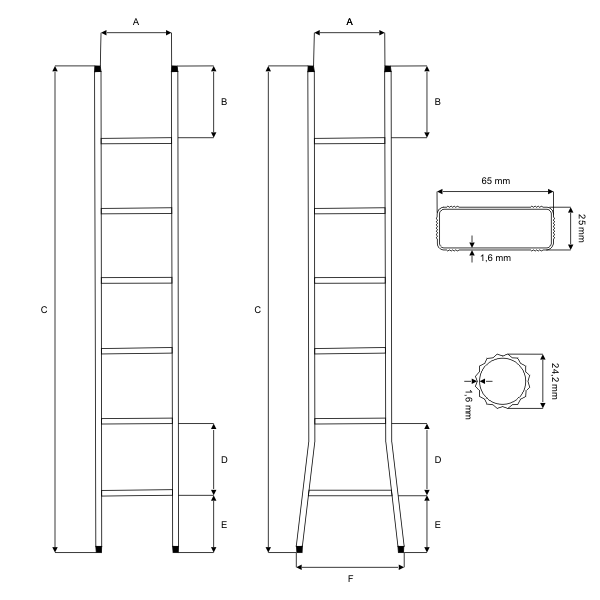

Measurements in millimeters

	STRAIGHT						OPEN
Ref.	A	B	C	D	E		A	B	C	D	E	F
98	350	315	2060	300	245		410	315	2060	300	245	490
99	350	380	2560	300	380		410	380	2560	300	380	505
100	350	330	3060	300	330		410	330	3060	300	330	545
101	350	320	3560	300	245		410	320	3560	300	245	535
102	350	380	4060	300	380		410	380	4060	300	380	561
103	350	380	4560	300	285		410	380	4560	300	285	545
104	350	325	5060	300	235		410	325	5060	300	235	535
105	350	-	5560	300	-		410	-	5560	300	-	-
106	350	335	6060	300	330		410	335	6060	300	330	550
